VH110 & VH180-D : Directional Hydrophones (69 & 180 kHz)
-
Overview
The VH110 and VH180-D are used with the VR100 receiver to locate and track ultrasonic transmitters on passing fish or equipment.

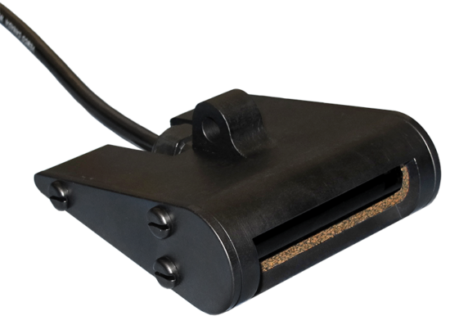

The VH110 and VH180-D directional hydrophones are hydro-dynamically shaped so they can be easily moved through water while receiving acoustic signals.
The frequency range for the VH110 is 50 to 84 kHz, which makes it suitable for reception of V7, V8, V9, V13, and V16 69 kHz transmitters. The frequency range of the VH180-D is 180 kHz for use with V5-180 and V9-180 transmitters.
TIPS
- Turn off boat motor and depth sounder to reduce acoustic interference.
- The attachment hole is 11/16″ diameter. The figure shows one method used to mount the hydrophone to a pole.
For more details, see Downloads section.
Have you looked whether you need to update your VR100? click here
-
Gallery
-
Specifications
Specifications: Frequency range VH110: 50kHz – 85kHz VH180-D: 180kHz
Tag compatibility VH110: V7, V8, V9, V13, V16VH180-D: V4, V5, V6 Receiver compatibility VR100 Operational temperature range -5°C to +40°C (water must not freeze) Case (dimensions and material) Hydrodynamic black anodized aluminum; 95 x 83 x 32 mm Weight in air VH110-10m: 840 g VH180-D-10m: 830 g

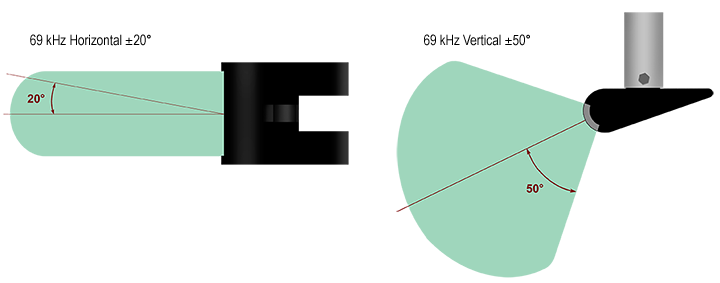

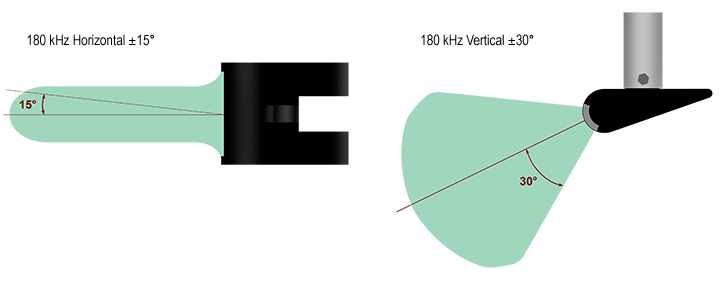

Cable type and available lengths Shielded twisted pair, polyurethane jacket; Length 10m Uses Directional hydrophone “hears” pings from only one side of case. Best for actively tracking a tagged animal. Recommended max. tow speed 5 knots if mounted to a pole Preamplifier gain 50 dB nominal Beam pattern (± 10%) 69kHz: Horizontal ± 20°; Vertical ± 50°180kHz: Horizontal ± 15°; Vertical ± 30° -
