VHTx : Transponding Hydrophone (180 kHz)
-
Overview

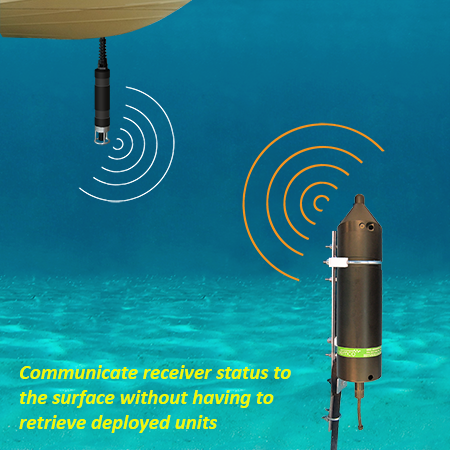

The VHTx-180k is an omni-directional transponding hydrophone that attaches to the VR100 active tracking receiver to communicate with VEMCO’s High Residence Receiver (HR2).
The VHTx-180k maintains all of the features of the VH180 hydrophone and is used with the VR100 receiver to locate and track VEMCO acoustic transmitters on passing fish or equipment. The VHTx-180k operates at 180 kHz frequency. The hydrophone is protected by a cage and is weighted to aid in lowering the hydrophone into water.
TIPS
- The VHTx is weighted and, depending on the current in the area, should not need additional weight to keep it at depth. If additional weight is required, be sure to use a separate rope to hold the weight and use strain-relief techniques to keep the hydrophone cable from being strained.
- Turn off boat motor and depth sounder to reduce acoustic interference.
For more details, see Downloads section.
-
Gallery
-
Specifications
SPECIFICATIONS:
Frequency range 180 kHz Tag compatibility All VEMCO 180 kHz PPM tags Receiver compatibility VR100 Operational temperature range -5°C to +40°C (water must not freeze) Case (dimensions and material) 41.275 mm diameter x 210 mm; Black acetal with a 304 stainless steel cage Weight in air 2370 g (including cable) Cable type and available lengths Shielded twisted, polyurethane jacket cable with a minimum bend radius of 4 inches; Length 25 metres standard Uses Use with the VR100 to detect VEMCO 180 kHz tags and to transpond with VEMCO HR2 receivers. -
